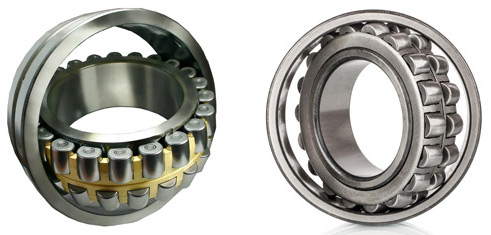

Spherical roller bearings have two rows of rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The centre point of the sphere in the outer ring raceway is at the bearing axis.
Spherical roller bearings are designed to accommodate heavy radial loads, as well as heavy axial loads in both directions.
|
